Morphic Studies

Discussion in 'Similar Vehicles' started by AriLea, Jun 28, 2014.

  1. AriLea

    AriLea Elio Addict

    Messages:
    3,424
    Likes Received:
    9,394
    Joined:
    Mar 20, 2014
    Location:
    anywhere
    Too tasty to ignore....

    Keith hopson, bamelio#5, Kuda and 3 others like this.
  2. Jelio

    Jelio Elio Addict

    Messages:
    119
    Likes Received:
    298
    Joined:
    Jul 5, 2014
    Location:
    Chapman, Kansas
    Reservation #:
    5591
  3. voyager

    voyager Elio Addict

    Messages:
    218
    Likes Received:
    157
    Joined:
    May 24, 2016
    Location:
    Amsterdam
    Three-wheelers are NOT interesting if they feature approx. the same width as a conventional four-wheeled car, IMO. The Elio for instance, is as wide as a Tesla Model S as I recall. Its factual footprint will be the same as that of a car that fills in the complete rectangular.

    How to keep vehicle width limited? Well, by doing two things:
    1. don't seat occupants next to each other
    2. use tilt to have the vehicle 'shrug off' lateral forces during cornering;
    tilt angle can be kept withing reason because of the low CoG (batteries)

    [​IMG]

    AriLea likes this.
  4. AriLea

    AriLea Elio Addict

    Messages:
    3,424
    Likes Received:
    9,394
    Joined:
    Mar 20, 2014
    Location:
    anywhere
    The wide stance is a common engineering/design debate. It's a set of choices based on desires or objectives.

    By desire and objectives, I don't consider sociable seating a sensible use of a three wheeler. For my preference, the reason for a trike is to get an aerodynamic benefit,(and weight/cost benefit,) and done by getting it shaped into that classic tear-drop form. A 2F1R fits that shape better than a 1R2F layout, plus the 2F is easier to make safe for roll-over, given you can implement FWD.

    True, in general, when you drop one wheel you always loose 10% of complexity and maybe 15% of weight. But you also loose some desirable handling and rollover in trade. You do get to use the diamond lane, which is nice. Some consider trikes unique and cool, chalk that up to individual taste.

    I say do three if you get enough in trade. For my preferences going solo or tandem makes it easier to benefit doing a trike/autocycle.

    But now about narrow vs wide, yes, a narrow vehicle has less aero-profile, and entry is easier to engineer. But you loose in the rollover and handling department, which a trike was already challenged at. So I prefer wide..yet tandem seating... but....to mitigate the profile, I recover as much space between wheels and the body as I can. Since there is room to make a classic aero-form via the fenders you don't loose much in aerodynamics(only if using tandem seating). You do gain a minimal of weight (via the fenders) going wide, but not a lot.

    So look at the three vehicles above. I agree with your issues. I love all three, but... The rounded back corners represent very poor aerodynamics. (called a bluff form by some) The smart-for-three has very little if any engineering advantages compared to a 4 wheeler such as a Fiat 500. In exchange you get rollover restrictions, and handling issues due to high center of gravity. Safe maybe, but not desirable. The best mpg you will get out of that sidecar is maybe 60mpg. The Heinkle/Issetta was never meant to go over 50mph. If re-engineered to do 65-75MPH, it would loose any advantages it had over the Fiat 500.

    Oh and about tilters, for the complexity and cost, you get exactly what you had in a two wheeler. So why bother? Oh ok it's cool, but, there are some handling issues that may crop up depending on the technical implementation of tilt. So it may be less safe. Now all bets are off if you get the gyro hardware to work with-out making a driver sea-sick. But the cost/reliability of that is suspect up to now.

    So the only trikes I dabble morphic artwork in, until they exist in large numbers, are 2F1R, FWD, Tandem/Solo seating autocycles.

    I came back to give some Morphic updates...next post then

    Last edited: Jan 7, 2020
    Bert and ehwatt like this.
  5. AriLea

    AriLea Elio Addict

    Messages:
    3,424
    Likes Received:
    9,394
    Joined:
    Mar 20, 2014
    Location:
    anywhere
    Some recent artwork... (I'm very charmed by the 60's punk retro-VW)

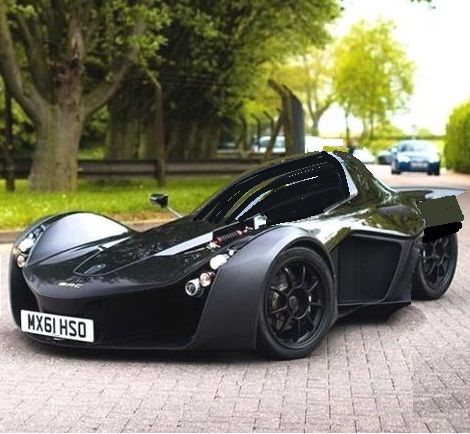

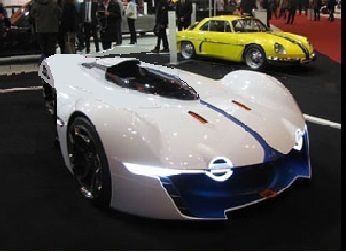

    d52b6a519f0b1871e67408d01d4f58ae.jpg 91a4c74bde63d4d52fe8590b1466c93b.jpg c30ff600f0a370dcb68306ac647c744e.jpg 0857c67d6e9e6c502ceae1311af76857.jpg 16e0eaed948ea0adaaae53f3efe1e885.jpg 13a15e349741925550bcbcabe5a5365e.jpg 24024682227a578c860047ed32fea6ba.jpg 289c35a25a636cc324f09396633c4507.jpg

    Last edited: Jan 7, 2020
    BigWarpGuy, Bert, Coss and 1 other person like this.
  6. AriLea

    AriLea Elio Addict

    Messages:
    3,424
    Likes Received:
    9,394
    Joined:
    Mar 20, 2014
    Location:
    anywhere

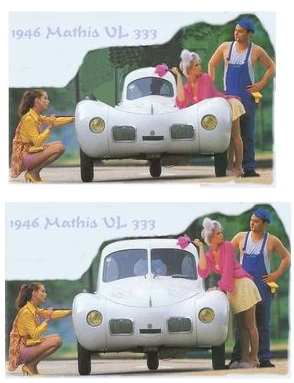

    9ae0340aa60d8b5b9b986f51f2cb574f.jpg 3844f90f96885997c48590bb38ed79bf.jpg

    Last edited: Jan 9, 2020
    Bert, Coss and ehwatt like this.
  7. AriLea

    AriLea Elio Addict

    Messages:
    3,424
    Likes Received:
    9,394
    Joined:
    Mar 20, 2014
    Location:
    anywhere

    BigWarpGuy likes this.
  8. AriLea

    AriLea Elio Addict

    Messages:
    3,424
    Likes Received:
    9,394
    Joined:
    Mar 20, 2014
    Location:
    anywhere
    SiFi Punk anyone?

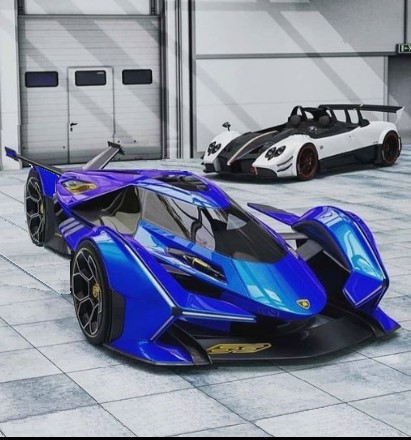

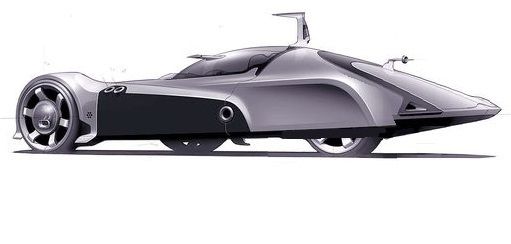

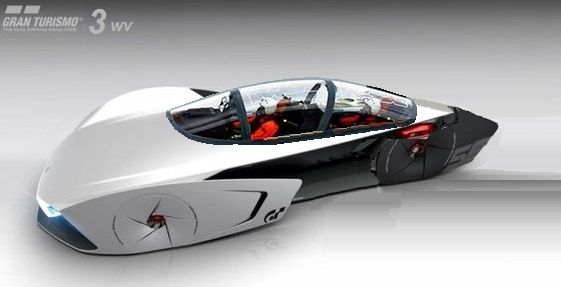

    thumbnail_New Bitmap Image - Copy.jpg 1fccbf08a9db6c57cbe407f1b14383b3.jpg 4527cc34ba18d92717f4731ccacb47bd.jpg 52d482b97e2798a49d632e3306e66f44.jpg

    BigWarpGuy, Coss and ehwatt like this.
  9. AriLea

    AriLea Elio Addict

    Messages:
    3,424
    Likes Received:
    9,394
    Joined:
    Mar 20, 2014
    Location:
    anywhere

    BigWarpGuy and Coss like this.
  10. AriLea

    AriLea Elio Addict

    Messages:
    3,424
    Likes Received:
    9,394
    Joined:
    Mar 20, 2014
    Location:
    anywhere

    BigWarpGuy likes this.
