Rear Wheel Alignment?

Discussion in 'Elio Drivetrain' started by NSTG8R, Oct 11, 2014.

  1. NSTG8R

    NSTG8R Elio Addict

    Messages:
    3,841
    Likes Received:
    11,010
    Joined:
    Jul 24, 2014
    Location:
    Pacific, MO
    Reservation #:
    5971
    I did a cursory search on the forum, and didn't seem to find an answer. If this was covered, and I just missed it, apologies in advance.:)

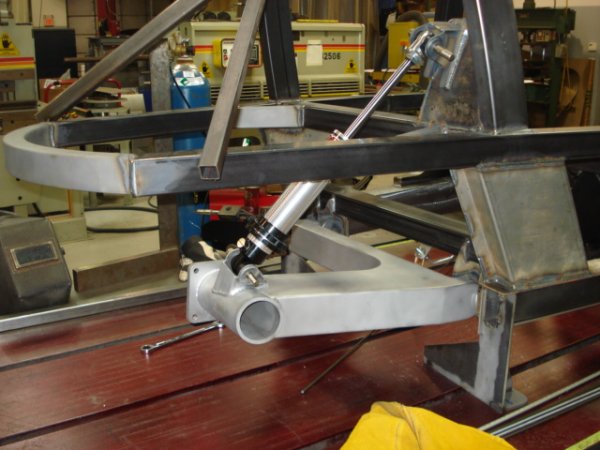

    The rear suspension looks very similar to my Porsche's, except my Porsche's rear suspension has a means to adjust the rear wheel alignment. I was checking out the best picture I could find of the Elio's rear wheel, and can't see that there's adjustment, just a swing arm with what appears to be welded mounts...hard to tell. Just curious if anyone got a real good look at it. This might be a good question for Jerome when you Georgia guy/gals see it next week at the airshow. I could see how smacking some potholes might tweak the rear wheel swing arm, and it would be nice if there was a way to get it realigned so you're tracking straight.

    Anyone know about this part of the Elio?

    elio rear suspension.jpg

  2. outsydthebox

    outsydthebox Elio Addict

    Messages:
    1,751
    Likes Received:
    5,020
    Joined:
    May 6, 2014
    That looks really "beefy". They could probably make it stronger, but at what cost? I'm not referring to the cost of building it stronger. There needs to be a "weak link" designed in. The weak link (as I see it) should be the wheel, so the wheel should be weaker than the swing arm. Then the swing arm should be weaker than the frame. Much less costly to replace the swing arm, than to repair frame damage. :)

    ross, zelio, RUCRAYZE and 2 others like this.
  3. harlan stephens

    harlan stephens Elio Addict

    Messages:
    135
    Likes Received:
    156
    Joined:
    Oct 5, 2014
    Location:
    United States
    I would think some type of swing arm bushing would be a weak link in there as well.

    NSTG8R and outsydthebox like this.
  4. NSTG8R

    NSTG8R Elio Addict

    Messages:
    3,841
    Likes Received:
    11,010
    Joined:
    Jul 24, 2014
    Location:
    Pacific, MO
    Reservation #:
    5971
    Yep, looks pretty beefy. And I get what you're saying about having a "weak link" in the suspension. I was wondering if the pivot points at the frame are cammed (off-centered mounting bolt in a bushing), that would allow adjustment along the center axis, yaw for lack of a better term (brain malfunctioning today), of the wheel. Porsche accomplished this by having oversized holes at the outer pivot mount where it attaches to the chassis, non-adjustable on the inner mount, which allows the swing arm to pivot on the inner mount, adjusting the toe-in/toe-out of the wheel assembly. I'd rather have to make adjustments to the rear wheel after an unfortunate collision with a pothole, than bend the swing arm, or worse yet, the frame. That would make the adjustment point the "weak link" I suppose.

    porsche 914 rear suspension.jpg

  5. CrimsonEclipse

    CrimsonEclipse Elio Addict

    Messages:
    959
    Likes Received:
    2,182
    Joined:
    May 24, 2014
    I doubt that any rear adjustment unless there is a wreck.

    The Elio won't likely need rear alignment similar to a pickup usually doesn't require one.

    Snick and zelio like this.
  6. skygazer6033

    skygazer6033 Elio Addict

    Messages:
    683
    Likes Received:
    2,224
    Joined:
    Jul 6, 2014
    Location:
    Splendora, Tx
    One of the questions I have is the type of pivot bearings that are to be used. Rubber bushings are quiet but not very precise, brass or Delrin get really noisy with a little wear, and my personal favorite tapered roller bearings as used by most all modern motorcycles. Mount bolts with eccentric pins could provide adjustments for alignment. Also tapered shims can be used between hub bearing carrier and swingarm for alignment. Since the tires contact patch should be dead center alignment should be difficult to disturb unless you really hit something HARD.

    Edward43, Bert, zelio and 2 others like this.
  7. skygazer6033

    skygazer6033 Elio Addict

    Messages:
    683
    Likes Received:
    2,224
    Joined:
    Jul 6, 2014
    Location:
    Splendora, Tx
    Crimson Eclipse --- Your probably right. Considering the Elio price there may be no provision for alignment at all. If you really prang the swingarm just replace it. For years to adjust caster on Ford pickups you used chains and a big hydraulic jack to bend the axles. A real pain but it could be done.

    Jim H, Edward43, outsydthebox and 2 others like this.
  8. JEBar

    JEBar Moderator Staff Member Moderator

    Messages:
    6,709
    Likes Received:
    17,492
    Joined:
    Aug 24, 2014
    Location:
    Wake County, NC
    does anybody know if EM plans to have the frame welded by humans or by computer controlled robots .... if robots, I can see how the rear swingarm could consistently be mounted to where no adjustment would be needed

    Jim

    Edward43, zelio and NSTG8R like this.
  9. NSTG8R

    NSTG8R Elio Addict

    Messages:
    3,841
    Likes Received:
    11,010
    Joined:
    Jul 24, 2014
    Location:
    Pacific, MO
    Reservation #:
    5971
    Tapered roller bearings would be good. Maybe throw a grease zerk on each side to keep everything moving smoothly. Didn't think about tapered shims on the hub carrier. That could work, and be very inexpensive. Good thinking skygazer!

    Jim H, outsydthebox and zelio like this.
  10. skygazer6033

    skygazer6033 Elio Addict

    Messages:
    683
    Likes Received:
    2,224
    Joined:
    Jul 6, 2014
    Location:
    Splendora, Tx
    Not my idea. Fixed gear Cessna aircraft been using tapered shims for like 80 years.

    Jim H, Edward43, outsydthebox and 2 others like this.
