What Do We Know About The Elio Chassis?

Kuda

Elio Addict
Joined
Feb 24, 2014
Messages
2,104
Reaction score
4,750
Location
NC
thanks for remembering, I don't care what they've been saying about you, you're o.k. w/ me!



Lil4X

Elio Addict
Joined
Apr 26, 2014
Messages
948
Reaction score
3,417
Location
Houston, Republic of Texas


Given the drawings probably aren't properly scaled, we need to take some of these apparent changes in the pictures with a bit of salt.

It appears that the rear wheel has been pushed back a couple of inches, and given a little fudge factor for perspective, it's larger too. The front window appears to be a little taller, consistent with a slightly lowered beltline and a larger greenhouse. Rear window is considerably longer too, hopefully meaning more room in the back seat to ease my wife's complaints from the second row. At the same time, I think I read that the driver's seat belt will be moved to the right-hand side, clearing the doorway for entrance to the back seat. That'll be a big bonus. :)


AriLea

Elio Addict
Joined
Mar 20, 2014
Messages
3,863
Reaction score
9,877
Location
anywhere


Given the drawings probably aren't properly scaled, we need to take some of these apparent changes in the pictures with a bit of salt.

It appears that the rear wheel has been pushed back a couple of inches, and given a little fudge factor for perspective, it's larger too. The front window appears to be a little taller, consistent with a slightly lowered beltline and a larger greenhouse. Rear window is considerably longer too, hopefully meaning more room in the back seat to ease my wife's complaints from the second row. At the same time, I think I read that the driver's seat belt will be moved to the right-hand side, clearing the doorway for entrance to the back seat. That'll be a big bonus. :)

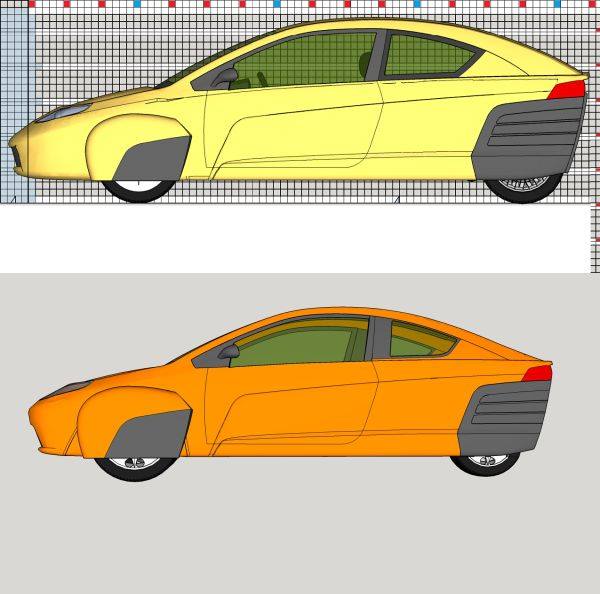

The exact angle of any one of the 2d exports can be a little misleading. Measurements can seem to change a little one way or the other. The image I used to create my 3d and then this 2d export was started from a slide EM created that we captured I call the Red Elio. My guess, working with it, is that it shows only the improved aerodynamic nose as well as the extra 2 inches for the passenger, affecting window shapes, which Paul had publicly talked about. And that's about all the changes I found while creating the 3d. There may also have been a slight change to the location of the Windshield at the bottom, but I couldn't be sure of that, because it was indeed a 2d export from the EM 3d database.

Even though Jerome said the 'Red' is the Year1, there is no reason they can't make more changes if they so choose. I suspect also there would have to be an extremely good reason for any more changes, since what they have now fulfills the stated objects pretty well. They don't like to waist money or time if possible.

I also found that the nose may be a slightly lifted and a underbelly added for that, but I ingnored that since it wouldn't affect the 3d print very much.

Last edited:

John Painter

Elio Addict
Joined
Sep 16, 2014
Messages
1,435
Reaction score
5,188
Location
Lewiston, Maine
The exact angle of any one of the 2d exports can be a little misleading. Measurements can seem to change a little one way or the other. The image I used to create my 3d and then this 2d export was started from a slide EM created that we captured I call the Red Elio. My guess, working with it, is that it shows only the improved aerodynamic nose as well as the extra 2 inches for the passenger, affecting window shapes, which Paul had publicly talked about. And that's about all the changes I found while creating the 3d. There may also have been a slight change to the location of the Windshield at the bottom, but I couldn't be sure of that, because it was indeed a 2d export from the EM 3d database.

Even though Jerome said the 'Red' is the Year1, there is no reason they can't make more changes if they so choose. I suspect also there would have to be an extremely good reason for any more changes, since what they have now fulfills the stated objects pretty well. They don't like to waist money or time if possible.

I also found that the nose may be a slightly lifted and a underbelly added for that, but I ingnored that since it wouldn't affect the 3d print very much.

I think that new nose gives it a bit of the Spy vs Spy profile. No?

Last edited:

AriLea

Elio Addict
Joined
Mar 20, 2014
Messages
3,863
Reaction score
9,877
Location
anywhere
I don' care for the extended nose, the current trend is short front and rear overhangs.

I certainly don't argue against what someone likes or not. But I do like to know what you think. For me it's getting to the point that if I know what classic or typical cars a person likes, I have a fair chance to design overall body lines for a three wheeler (or 4) that person would respond to positively.

I'm less good at coming up with a cutting edge, new style, maybe being just a bit old fashioned about it. I'm beginning to think sometimes new automotive hyper-styling is, IMHO, just a bit 'terkie' ( Yes, as in. miley C ), seeming simply hunting edginess for edginess's sake. But that's just opinion based on what I personally like, of course. lol


John Painter

Elio Addict
Joined
Sep 16, 2014
Messages
1,435
Reaction score
5,188
Location
Lewiston, Maine
I certainly don't argue against what someone likes or not. But I do like to know what you think. For me it's getting to the point that if I know what classic or typical cars a person likes, I have a fair chance to design overall body lines for a three wheeler (or 4) that person would respond to positively.

I'm less good at coming up with a cutting edge, new style, maybe being just a bit old fashioned about it. I'm beginning to think sometimes new automotive hyper-styling is, IMHO, just a bit 'terkie' ( Yes, as in. miley C ), seeming simply hunting edginess for edginess's sake. But that's just opinion based on what I personally like, of course. lol
Great work with the rendering, and I agree with you except I think you meant "twerking" which is done like this.


Or if you really meant "turkey" I'm cool with that too.


I'm even ok if you meant "trekkie"....
[Broken External Image]
:D:D:D


WilliamH

Elio Addict
Joined
Jan 27, 2015
Messages
2,192
Reaction score
4,831
Location
Junction, TX
I certainly don't argue against what someone likes or not. But I do like to know what you think. For me it's getting to the point that if I know what classic or typical cars a person likes, I have a fair chance to design overall body lines for a three wheeler (or 4) that person would respond to positively.

I'm less good at coming up with a cutting edge, new style, maybe being just a bit old fashioned about it. I'm beginning to think sometimes new automotive hyper-styling is, IMHO, just a bit 'terkie' ( Yes, as in. miley C ), seeming simply hunting edginess for edginess's sake. But that's just opinion based on what I personally like, of course. lol

If I could only find something that has the "feel" of a "'56 long nosed 'D' Jag", a Lotus 7, and a Longbridge Austin-Healey I could be happy.
Of course NHTSA probably wouldn't allow it.
