My Elio Alternate Project Is Underway.
- Thread starter Mark BEX
- Start date
Nothing set in stone yet, still down the track, but one option is to have them assembled Stateside, and that would involve shipping kits, of which some might like to assemble themselves.
Velhartice
Elio Enthusiast
I wouldn't mind assembling my own either, it would be a fun project. I've got the tools and the garage space.
Made in USA
Elio Addict

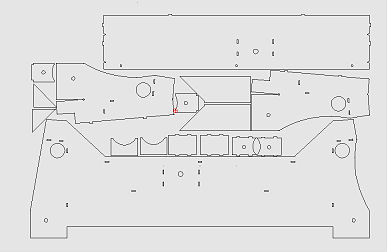

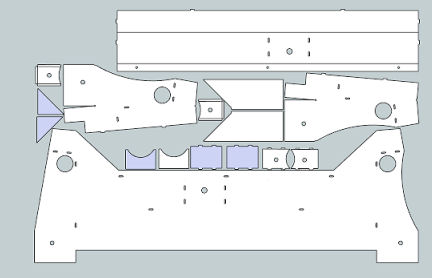

Curious if when you do the laser layout if you take into consideration the cut path? You obviously are trying to utilize the space well.

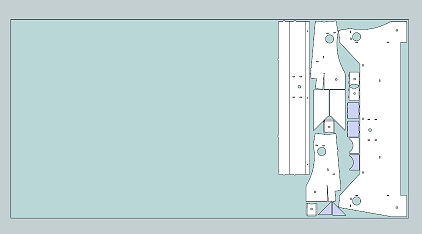

That's quite a loose nest, I get much tighter than that usually. Nesting is fun, it's a challenge, like a jigsaw puzzle. This is what it looks like on a 1000 x 2000mm/4 x 8ft sheet ..
The laser cut is less than 0.1mm/0.004" but occasionally they have a spit, and I don't know where the starting hole will be, it can be a bit messy sometimes, so I play it safe unless I need to utilise the whole sheet to avoid buying another.
Last edited:
is the crossmember design you've decided on available off the shelf or will you have to find a source to manufacture them for your assembly line

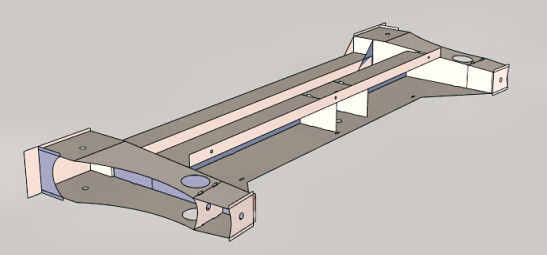

It is a bespoke crossmember integral with the chassis.
a/ It is made as simply as possible from flat sheetmetal, laser or waterjet cut, with only 4 x 90 degree folds, that any small local engineering shop can replicate quickly if damaged. I am more than happy to supply them or the CNC file to cut them. I will show the building of the crossmember over the next few days.
I have no intention of holding people to ransom with bespoke parts as some companies do.
b/ It is designed around using standard 'off the shelf parts' such as lower control arms that are replaced often due to accident damage or ball joint/bush wear.
10-4 .... that makes good sense .... the car will have to have some unique parts .... designing those parts so as to accommodate as many as possible off the shelf parts as is possible.... nicely done
i work from a different angle, a set an approximate price, then I see what I can offer within that budget. Low volume or high volume is no problem, it's middle volume that is the killer as it costs just as much to tool up as it does for high volume, and is the step up from low volume that has killed many an attempt in many fields of business.
------------------------------

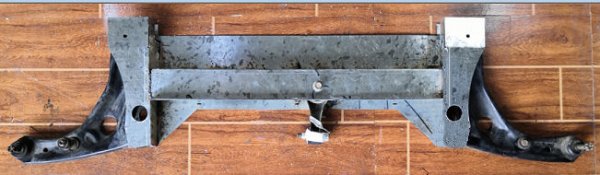

The parts for the crossmember were lasered today, so moving forward there now ...
